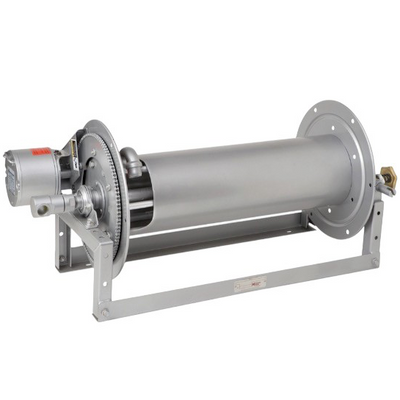

Hannay F4100 Booster Hose Reel
Hannay F4100 Booster Hose Reel



Price: $424.00

Price with Selected Options: $424.00
Shipping: Additional shipping and handling fees may apply

Availability: Available for order
Product Code: HY-F4100

Choose a Color

Red
Silver (standard)
Choose a Thread Type

NH/NST
NPSH
Hannay Discharge Size

1"
3/4"
Hannay F4100 Model

4118-17-18
4124-17-18
4130-17-18
4138-17-18
Hannay Intake

90 degree elbow
straight
Hannay Manual/Electric Reel

Manual Rewind, Removable Direct Crank, (LB) Left Bottom
Manual Rewind, Removable Direct Crank, (LT) Left Top
Manual Rewind, Removable Direct Crank, (RB) Right Bottom
Manual Rewind, Removable Direct Crank, (RT) Right Top
12V DC, Electric Rewind, (LB) Left Bottom [Add $340.00]
12V DC, Electric Rewind, (LT) Left Top [Add $340.00]
12V DC, Electric Rewind, (RB) Right Bottom [Add $340.00]
12V DC, Electric Rewind, (RT) Right Top [Add $340.00]
24V DC, Electric Rewind, (LB) Left Bottom [Add $390.00]
24V DC, Electric Rewind, (LT) Left Top [Add $390.00]
24V DC, Electric Rewind, (RB) Right Bottom [Add $390.00]
24V DC, Electric Rewind, (RT) Right Top [Add $390.00]
Hannay Roller & Spool Assembly
Click to view another Hannay Roller & Spool Assembly

Single Roller & Spool (High Mount) [Add $166.50]
Single Roller & Spool (Low Mount) [Add $166.50]
Box Roller & Spool (High Mount) [Add $190.00]
Box Roller & Spool (Low Mount) [Add $190.00]
Two Roller & Spools (High/Low Mount) [Add $332.50]
none

Qty:
Description

Hannay F4100 Booster Hose Reel

The Hannay F4100 Booster Hose Reel is a Manual or Power Rewind Reel that can handle single 3/4" or 1" I.D. booster hose.

Applications:
Fuel Dispensing / Water Supply / Fire Protection / Chemical Transfer

Features:
  • Lightweight, compact reels designed for long lengths of hose in manual and power rewind
  • Gear driven crank rewind handle is removable
  • Chain and sprocket drive powered by electric, hydraulic, or compressed air motor
  • Gear driven crank rewind, adjustable pinion brake
  • Standard inlet: 90 degree ball bearing swivel joint, 1" female NPT threads
  • Standard outlet: 1" female NPT threads
  • Optional rollers: specify roller position when ordering
  • Pressures to 1000 psi (69 bar)
  • Temperatures from -60 degree F to +250 degree F (-51 degree C to +121 degree C)
  • Consult factory for other pressures and temperatures

REEL CAPACITY:
Model:
Hose Size
ft.
m
lb.
kg.
4118-17-18
1" ID
35'
10.7
62
28.1
4118-17-18
3/4" ID
50'
15.2
62
28.1
4124-17-18
1" ID
50'
15.2
72
32.7
4124-17-18
3/4" ID
100'
30.5
72
32.7
4130-17-18
1" ID
75'
22.9
83
37.6
4130-17-18
3/4" ID
150'
45.7
83
37.6
4138-17-18
1" ID
100'
30.5
96
43.5
4138-17-18
3/4" ID
200'
61.0
96
43.5

REEL DIMENSIONS:




CAUTION: F4000/4100 series reels not recommended for use with Niedner Reeltex hose.
