2-1/2" Class1 Liquid Filled Gauge

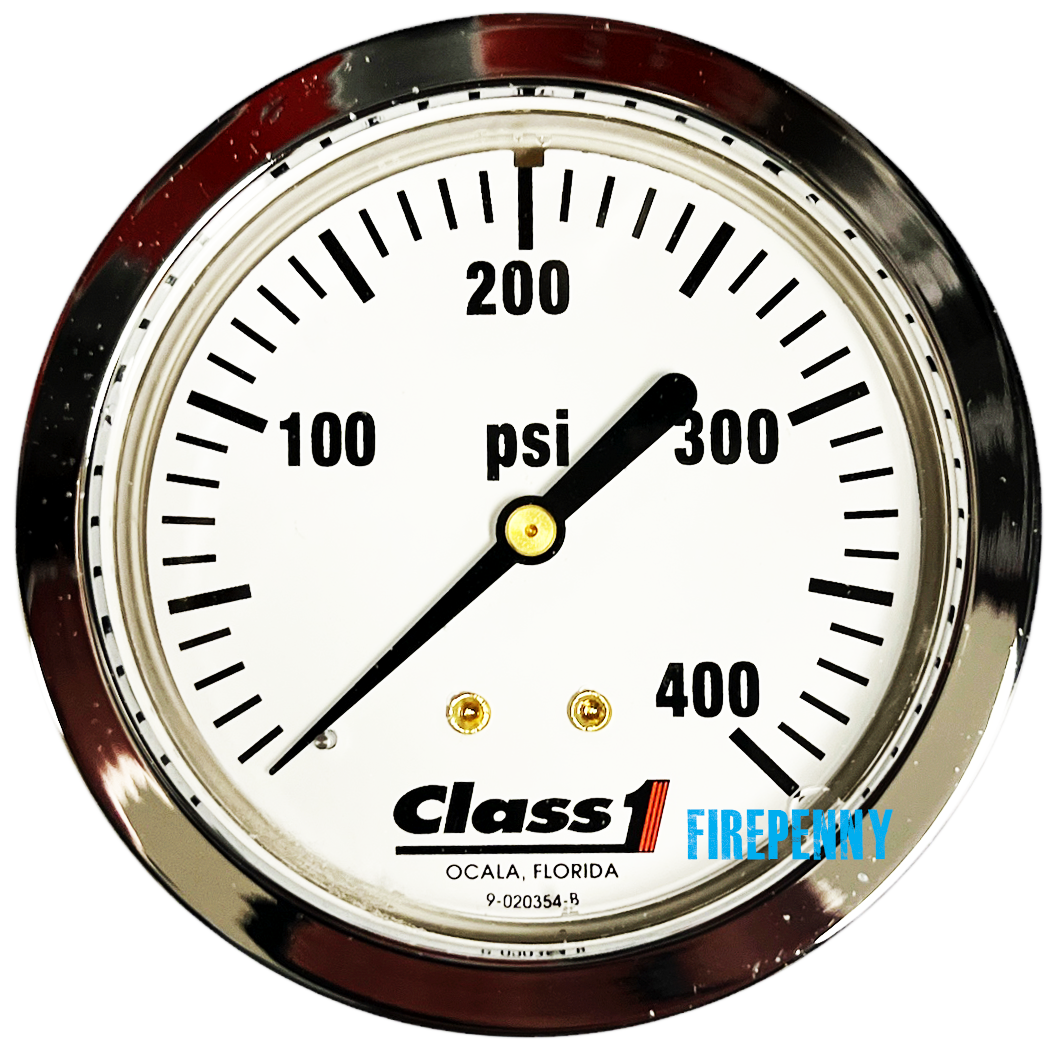

2-1/2" Class 1 Liquid Filled Gauge



Alternative Views:


Price: $115.00

Price with Selected Options: $115.00

Availability: Available for order
Product Code: HALE-LFG9152

Class 1 Gauge Size

2-1/2"
Class 1 Gauge Face Color
Click to view another Class 1 Gauge Face Color

White
Class 1 Gauge Range, 2-1/2"

91525875: 0-300 PSI
91523971: 0-400 PSI
91523932: 30"-0-400 PSI
91523934: 0-600 PSI
91523933: 30"-0-600 PSI
91525862: 0-400 PSI/KPA
91529546: 30"-0-400 PSI/KPA
91525931: 0-600 PSI/KPA
91525974: 30"-0-600 PSI/KPA
Class 1 Gauge Bezel Color, 2-1/2"
Click to view another Class 1 Gauge Bezel Color, 2-1/2"

Chrome (std)
Black [Add $46.00]
Blue [Add $46.00]
Brown [Add $46.00]
Gray [Add $46.00]
Green [Add $46.00]
Lime [Add $46.00]
Orange [Add $46.00]
Purple [Add $46.00]
Red [Add $46.00]
Silver [Add $46.00]
White [Add $46.00]
Yellow [Add $46.00]
Class 1 Gauge Options

none
12 Volt Blue LED Light [Add $40.00]
12 Volt Green LED Light [Add $40.00]
12 Volt Red LED Light [Add $40.00]
12 Volt White LED Light [Add $40.00]
12 Volt Yellow LED Light [Add $40.00]
24 Volt Blue LED Light [Add $40.00]
24 Volt Green LED Light [Add $40.00]
24 Volt Red LED Light [Add $40.00]
24 Volt White LED Light [Add $40.00]
24 Volt Yellow LED Light [Add $40.00]
Fitting Connection (clip on) [Add $45.00]
Fitting Connection (clip on) + 12 Volt Blue LED Light [Add $50.00]
Fitting Connection (clip on) + 12 Volt Green LED Light [Add $50.00]
Fitting Connection (clip on) + 12 Volt Red LED Light [Add $50.00]
Fitting Connection (clip on) + 12 Volt White LED Light [Add $50.00]
Fitting Connection (clip on) + 12 Volt Yellow LED Light [Add $50.00]
Fitting Connection (clip on) + 24 Volt Blue LED Light [Add $50.00]
Fitting Connection (clip on) + 24 Volt Green LED Light [Add $50.00]
Fitting Connection (clip on) + 24 Volt Red LED Light [Add $50.00]
Fitting Connection (clip on) + 24 Volt White LED Light [Add $50.00]
Fitting Connection (clip on) + 24 Volt Yellow LED Light [Add $50.00]

Qty:
Description

2.5" Class1 Liquid Filled Gauge

Class1 is a leading manufacturer of gauges that exceed the rigorous demands of fire service professionals.

The Class1 Interlube Filled Pressure Gauges with patented Sub-Z II freeze-proof isolator are a must for all fire apparatus. Because the stem and bourdon tube are filled and sealed with a low temperature liquid, water cannot enter the tube. This prevents freezing and subsequent damage to the gauge.

The fill fluid in the case dampens pulsations and vibration while eliminating the need for snubber valves. In addition, Interlube fill eliminates fogged lenses, rust and corrosion.

The demands of fire fighting professionals for accurate and reliable instrument readings have been met by thousands of Class1 freeze proof pressure gauges that are now in service and meet or exceed NFPA and ANSI standards.

Specifications:
Case: 2.5" gauge - Zytel nylon
Bezel: Standard chrome plated or optional colors (2.5" only)
Lens: High impact resistant acrylic
Socket: Brass, equipped with Sub-Z freeze proof protection
Bourdon Tube: Phosphor bronze, filled with low temperature liquid
Connections: 1/4" NPT brass male connection
Case Fill Fluid: Interlube
Dial: White with black markings as standard
Temperature Compensation: Internal breathing diaphragm
Accuracy: 2.5" gauge +/- 2% mid-scale; +/-3% balance, ANSI B40.1, Grade B
Mounting: Panel mount with adhesive gasket and spin-on ring
Pressure Ranges Available: Dual scale with KP or Bar available in limited ranges

Lighted Pressure Gauges:
The Class 1 series of liquid filled backlit pressure gauges use LEDs to light the liquid-filled gauges. The gauge case has been upgraded to isolate the LED light from the gauge. LED lights are independent of the gauge allowing for interchangeability color selection and easy field replacement.

2.5" Colored Bezels:
Class1 colored bezels are made of stainless steel with DuPont AlestaTM powder coating. This coating provides superior durability and corrosion protection. Colored bezels are available in 12 colors on our premium 2.5" gauges. Not installed, ordered separately.

Gauge Body Design:
The Class1 innovative body design for fire service gauges will make installation a simple operation. This case utilizes a unique spin-on ring to clamp the gauge into the pump panel.

The Class1 body design will also work if you need to replace an existing Class1 gauge. The hole cut outs are the standard Class1 sizes.
