Hannay F Series Booster Hose Reel
Hannay F Series Booster Hose Reel



Alternative Views:


Price: $775.00

Price with Selected Options: $775.00
Shipping: Additional shipping and handling fees may apply

Availability: Available for order
Product Code: HY-FSERIES

Choose a Color

Red
Silver (standard)
Choose a Thread Type

NH/NST
NPSH
Hannay Discharge Size

1"
3/4"
Hannay Intake

90 degree elbow
straight
Hannay Manual/Electric Reel
Click to view another Hannay Manual/Electric Reel

Manual Rewind, Removable Direct Crank, (LB) Left Bottom
Manual Rewind, Removable Direct Crank, (LT) Left Top
Manual Rewind, Removable Direct Crank, (RB) Right Bottom
Manual Rewind, Removable Direct Crank, (RT) Right Top
12V DC, Electric Rewind, (LB) Left Bottom [Add $340.00]
12V DC, Electric Rewind, (LT) Left Top [Add $340.00]
12V DC, Electric Rewind, (RB) Right Bottom [Add $340.00]
12V DC, Electric Rewind, (RT) Right Top [Add $340.00]
24V DC, Electric Rewind, (LB) Left Bottom [Add $390.00]
24V DC, Electric Rewind, (LT) Left Top [Add $390.00]
24V DC, Electric Rewind, (RB) Right Bottom [Add $390.00]
24V DC, Electric Rewind, (RT) Right Top [Add $390.00]
Hannay Roller & Spool Assembly
Click to view another Hannay Roller & Spool Assembly

Single Roller & Spool (High Mount) [Add $166.50]
Single Roller & Spool (Low Mount) [Add $166.50]
Box Roller & Spool (High Mount) [Add $190.00]
Box Roller & Spool (Low Mount) [Add $190.00]
Two Roller & Spools (High/Low Mount) [Add $332.50]
none
Hannay Series F Construction

Steel
Polished Aluminum [Add $450.00]
Hannay Series F Model

F32-19-21
F24-23-24
F30-23-24
F38-23-24

Qty:
Description

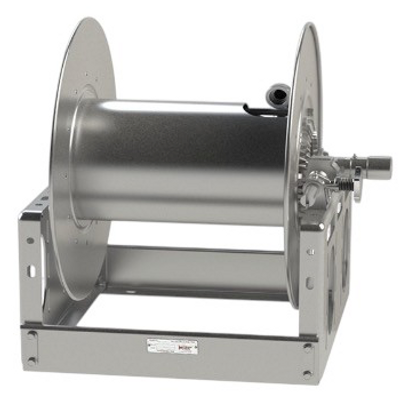

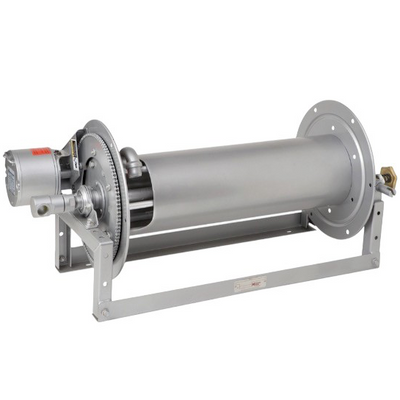

Hannay F Series Booster Hose Reel

The Hannay F Series Booster Hose Reel is designed to handle 3/4" I.D. or 1" I.D. booster hose.

Features:
  • Painted steel booster hose reel is dependable, rugged
  • "Super Booster" (aluminum construction) reel weighs up to 30% less than standard booster reel. Stainless steel construction is also available
  • Gear-driven crank rewind is standard. Choose chain and sprocket drive powered by electric, hydraulic, or compressed air motor
  • Pinion brake standard
  • Standard inlet: 1" 90 degree ball bearing swivel joint with 1" female NPT threads
  • Standard outlet: 1" male NST threads (1.375" x 8 threads per inch)
  • Consult factory for other sizes and/or threads
  • Standard inlet, outlet riser, and hub assembly are steel (also available in stainless steel)
  • Rollers and roller mounting brackets are accessory items. Specify roller position
  • Pressures to 1000 psi (69 bar)
  • Temperatures from -60 degrees F to +250 degrees F (-51 degreeC to+121 degreeC)
  • Consult factory for reels to operate at other pressures and temperatures
  • CAUTION: When using Niedner Reeltex hose, a special riser and/or larger drum diameter is required


REEL CAPACITY:
Model:
Hose Size:

ft.
m.

lb.
kg.
F32-19-21
1" ID
100'
30.5
102
46.3
F32-19-21
3/4" ID
150'
45.7
102
46.3
F24-23-24
1" ID
100'
30.5
92
41.7
F24-23-24
3/4" ID
150'
45.7
92
41.7
F30-23-24
1" ID
150'
45.7
105
47.6
F30-23-24
3/4" ID
250'
76.2
105
47.6
F38-23-24
1" ID
300'
61.0
120
54.4
F38-23-24
3/4" ID
350'
106.7
120
54.4









Reel Dimensions:


A
B
C
D
E
F
G
H
X
Y
F32-19-21:
29.5
24.0
10.5
20.5
21.62
21.62
21.5
12.12
21.5
16.75
F24-23-24:
21.0
15.5
10.5
20.5
23.00
23.00
23.5
12.12
13.0
16.75
F30-23-24:
27.5
22.0
10.5
20.5
23.00
23.00
23.5
12.12
19.5
16.75
F38-23-24:
35.0
29.5
10.5
20.5
23.00
23.00
23.5
12.12
27.0
16.75

CAUTION: When using Niedner Reeltex hose, a special riser and/or larger drum diameter is required
