Hale PowerFlow HPX75-KBD24 High Pressure Firefighting Pump
Hale PowerFlow HPX75-KBD24 High Pressure Firefighting Pump



Alternative Views:


Price: $11,345.00

Price with Selected Options: $11,345.00

Availability: Available for order
Product Code: HALE-HPX75-KBD24

Hale Base

Skid Base (truck mount)
Hale Control Panel
Click to view another Hale Control Panel

Control X-Stream Panel, Kubota (see details below)
Hale Hourmeter
Click to view another Hale Hourmeter

Maintenance Hour Meter [Add $170.00]
Round Hour Meter, 12/24 Volt DC [Add $315.00]
none (std)
Hale Muffler Blanket
Click to view another Hale Muffler Blanket

Muffler Blanket [Add $190.00]
none
Hale Muffler Exhaust Kit
Click to view another Hale Muffler Exhaust Kit

Muffler Exhaust Elbow with Rain Cap (shipped loose) [Add $140.00]
none (std)
Hale Tachometer
Click to view another Hale Tachometer

Tach Hour Meter, Programmable [Add $295.00]
none

Qty:
Description

Hale PowerFlow HPX75-KBD24 High Pressure Firefighting Pump

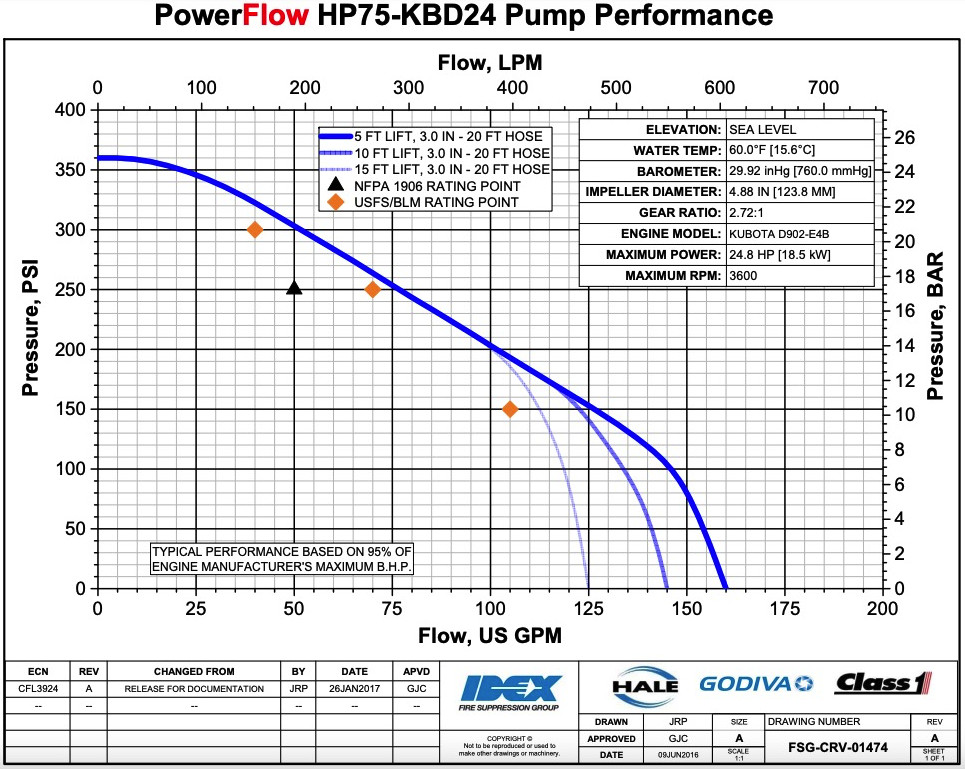

Flows:
115 GPM @ 150 PSI
70 GPM @ 250 PSI
40 GPM @ 300 PSI

You deserve fire pumps that you can depend on, first time, every time. That’s why the Hale high pressure pump range are designed
to be tough and dependable performers. Hale has over 100 years’ experience making fire pumps so you can be sure your Hale
pump will deliver performance when you need it.

Approved by the United States Forest Service (USFS) for use on all Type 4 and Type 6 USFS apparatus.

Features
:
  • Flows ranging from 15 GPM @ 350 PSI to 145 GPM @ 90 PSI
  • Kubota Super Mini Series D902 24.8-HP 4-cycle diesel engine
  • EPA Tier 4 emissions compliant
  • Electric start
  • Anodized aluminum alloy pump head and body
  • Pump head and body coupled together with stainless steel band clamp
  • for easy serviceability
  • Bronze impeller and renewable wear ring
  • Self-adjusting mechanical seal
  • Available 12V ESP primer
  • 6' wiring harness
  • 2.0" NPT suction connection; 1.5" NPT discharge

Applications/Solutions:
  • Fire OEMs
  • Firefighting - Wildland Forestry

Certifications:
NFPA 1906
Warranty:
3 year mfg
Weight:
353 lbs (160 kg)
Length:
34" inches (864 mm)
Width:
19.75" inches (502 mm)
Height:
35.5" inches (902 mm)
