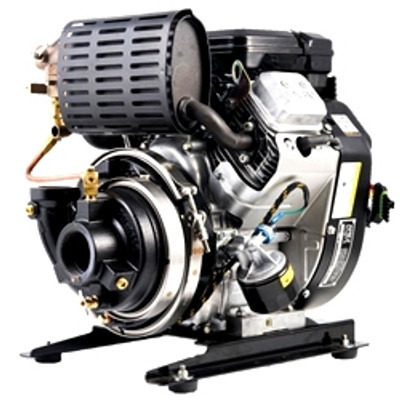

Hale HPX75-B23 Firefighting Pump
Hale HPX75-B23 Firefighting Pump
Hale HPX75-B23 Firefighting Pump

Hale HPX75-B23 Firefighting Pump

No reviews yet Write a Review
$6,899.95
SKU:
HALE-HPX75-B23
Shipping:
Free Shipping
Hale HPX75-B23 Fire Pump

The pump/engine shall be capable of meeting the NFPA 1906 performance rating 50 GPM @ 250 PSI.

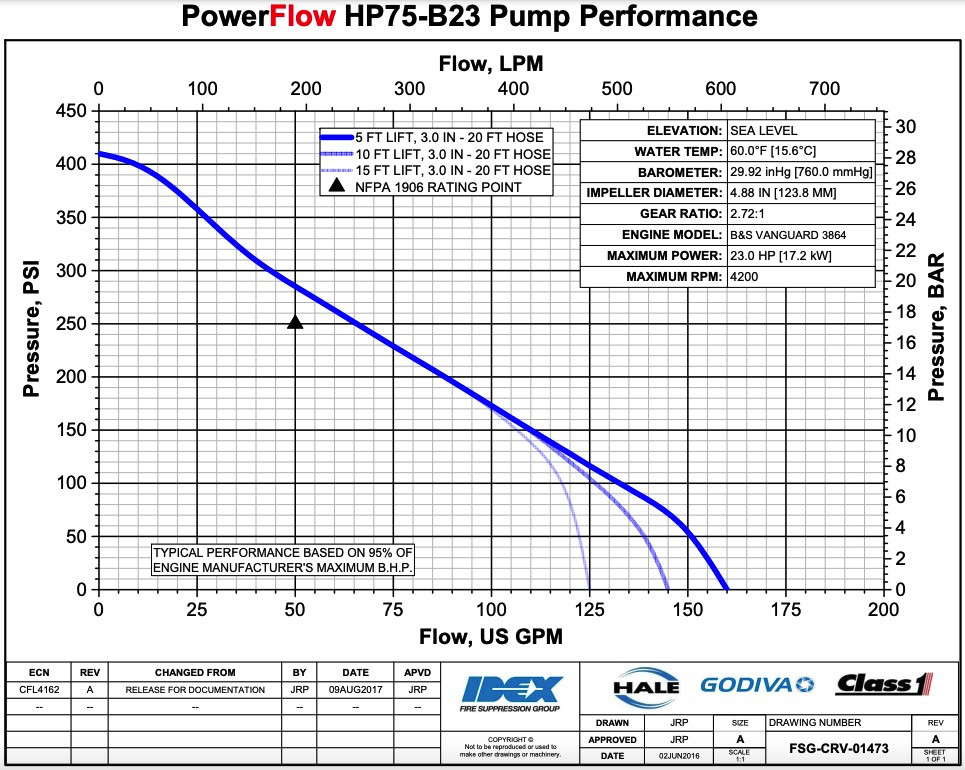

Flows (from a 5 foot draft at sea level):
135 GPM @ 80 PSI
70 GPM @ 220 PSI
50 GPM @ 250 PSI
15 GPM @ 380 PSI

The Hale HPX75-B23 has flows ranging from 15 GPM @ 380 PSI to 135 GPM @ 80 PSI.



The Hale high pressure pump range are designed to be tough and dependable performers.

The HPX (Max Stream) is conveniently designed for easy installation by truck builders.

Features:
  • Flows ranging from 15 GPM @ 380 PSI to 135 GPM @ 80 PSI
  • Ultra-reliable Briggs & Stratton 23-HP 4-cycle V-Twin gasoline engine
  • Electric start with recoil backup
  • Anodized aluminum alloy pump head and body
  • Pump head and body coupled together with stainless steel band clamp for easy serviceability
  • Bronze impeller and renewable wear ring
  • Self-adjusting mechanical seal
  • Exhaust gas venturi priming
  • 6’ wiring harness
  • 2.0" NPT Female suction connection
  • 1-1/2" NPT Female discharge

Control Panel:
  • Discharge gauge
  • Priming lever
  • Start button
  • ON/OFF switch
  • Oil warning light
  • Choke
  • Throttle control

Applications/Solutions:
  • Fire OEMs
  • Firefighting - Wildland Forestry

Specifications:
Length (inches):
21"
Width (inches):
18"
Height (inches):
20"
Weight:
157 lbs.
Suction Connection:
2.0" NPT suction connection
Discharge Connection:
1.5" NPT discharge
Body:
Anodized aluminum alloy pump and body
Impeller:
Bronze impeller and renewable wear ring
