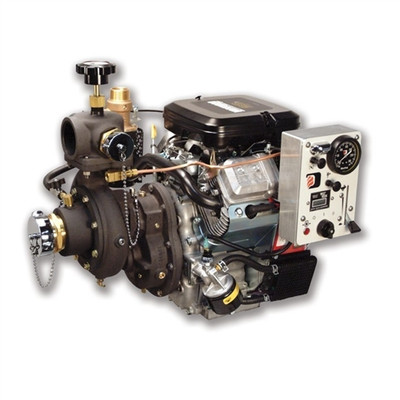

Darley Davey 10HP Briggs & Stratton Vanguard Fire Pump, 2 Stage
Darley Davey 10HP Briggs & Stratton Vanguard Portable Fire Pump



Alternative Views:


Price: $2,530.00

Price with Selected Options: $2,530.00

Availability: Available for order
Product Code: WS-AK301

Darley Davey Hose Kit

Hose Kit (see below for details) [Add $289.00]
none
Darley Davey Roll Cage

Roll Cage [Add $490.00]
none (std)

Qty:
Description

Darley Davey 10HP Briggs & Stratton Vanguard Firefighting Pump, 2 Stage

Pump Performance:
120 gpm (454 L/M) @ 36 psi (2.5 bar)
95 gpm (378 L/M) @ 83 psi (5.7 bar)
60 gpm (227 L/M) @ 118 psi (8.1 bar)
20 gpm (76 L/M) @ 144 psi (9.9 bar)

The Affordable, Portable, Engine-Driven Self-Priming Pumps.

The Darley Davey Pumps, also known as the "affordable portables" are the most economical choice in portable, high-efficiency pumps. Their compact design makes them ideal for a variety of applications such as firefighting, tank filling and water transfers.

Features:
  • Marine-grade aluminum casing
  • 3-Way discharge port with
  • 1 - 1.5" NPTM, 2 - 1" NPTM
  • 1.5" NPTM suction
  • Zinc-plated casing bolts
  • Mechanical shaft seal
  • Nitrile rubber seal and casing "O" rings
  • Self-priming up to 19 feet
  • Easy installation
  • Compact & lightweight
  • High pumping efficiency
  • Low oil protection

Weight:
80 lbs.

Dimensions:

22" x 17.7" x 16.8"

Optional Caged Roll Frame:
Dims: 30"L x 20"W x 21"H @ 50 lbs

Hose Kit includes:
  • (quantity 2) 25' lengths of 1" discharge hose
  • (quantity 2) 1" lexan nozzles
  • (quantity 1) 10' length of 1.5" suction hose
