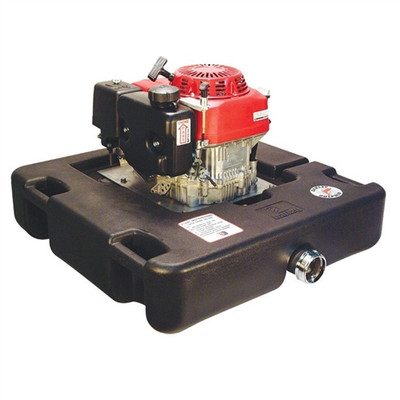

Darley 6.5HP Honda Portable Fire Pump (USCG P6 Pump)
Darley 6.5HP Honda Portable Fire Pump (USCG P6 Pump)



Alternative Views:


Price: $5,385.00

Price with Selected Options: $5,385.00

Availability: Available for order
Product Code: WS-2BE6.5H

Darley P6 Coast Guard Pump

STB001: Standard Pump
STB036: Coast Guard P6 Pump (details in description) [Add $1,250.00]
Darley P6 Container

A528: Container for P6 Version with cover and cover clamp [Add $550.00]
no container (std)

Qty:
Description

Darley 6.5HP Honda Portable Fire Pump

Pump Performance:

275 gpm (1040 L/M) @ 12 psi (0.8 bar)
175 gpm (662 L/M) @ 28 psi (1.9 bar)
100 gpm (378 L/M) @ 45 psi (3.1 bar)




6.5HP Portable Pump Model: 2BE 6.5H (U.S. Coast Guard P6) version comes with:
  • 15' Suction Hose
  • Strainer
  • 20' of Discharge Hose with Camlock
  • Fuel Tank
  • Spare Starter Rope
  • Flashlight (no batteries)
  • Instruction Card
  • NSN 4320-01-F99-0342 Medium Pressure, High Volume, Direct Drive, Engine Mounted
  • NSN 4320-01-470-5515 2BE 6.5HCG (U.S. Coast Guard P6).

Engine:
  • Honda Model GX200
  • Air-cooled 4 stroke OHV, single cylinder, 6.5 HP, recoil rope start back-up

Dimensions:
18" L x 16" W x 19" H

Weight:
49 lbs. (22 kg)

Features:
  • Honda Model GX200
  • Air cooled 4-stroke OHV
  • Single-cylinder
  • Horizontal shaft
  • 6.5 HP (4.8kW 600 rpm) max
  • Torque 1.35kg-m/2,500 rpm
  • Transistorized pointless ignition system
  • Recoil starting system
  • Fuel tank capacity 6 qt.
  • Dual silent air cleaner
  • 2011 Carb and EPA Compliant
  • 3" cam lock suction
  • 3" cam lock discharge

Options:
  • Discharge hose
  • Adapters
  • Caps
  • Suction hose with strainer

Resources:

  • Repair Manual
  • Instructions
  • Tech Manual
  • Curve

Applications:

  • Dewatering
  • Light Duty Brush Truck
  • Transfer and Supply
