CET 20hp Honda Skid Mount Mid Range Fire Pump
CET 20hp Skid Mount Mid Range Fire Pump



Alternative Views:


Price: $3,675.00

Price with Selected Options: $3,675.00

Availability: Available for order
Product Code: PFP-SM-20HP-HND-MR

CET Control Panel

attached (std)
CET Frame

skid frame (standard)
CET Salt Water Protection

bronze pump casing (single stage) [Add $900.00]
none
CET Scotty Foam System

scotty foam system [Add $650.00]
none
CET Vinyl Pump Cover

vinyl pump cover [Add $350.00]
none
Choose a Thread Type

NST/NH
NPSH
CET SM Fuel Tank

3 Gallon Fuel Tank [Add $260.00]
6 Gallon Fuel Tank [Add $275.00]
none

Qty:
Description

CET 20hp Honda Skid Mount Mid Range Fire Pump

Flows:
MAX FLOW: 300 GPM
MAX PRESSURE: 205 PSI
240 GPM @ 50 PSI
125 GPM @ 150 PSI
60 GPM @ 200 PSI

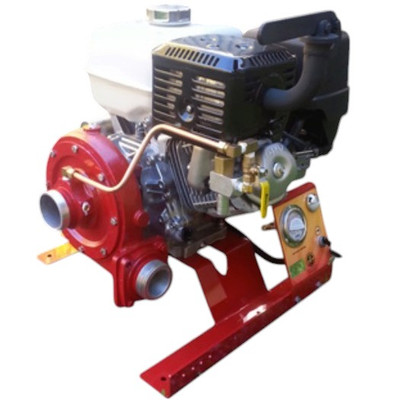

The 20hp Honda Mid Range Pump is a high pressure, high volume pump that is most suitable for drop-in units. The engine and pump are mounted on a skid frame. The skid version is easily mountable on vehicles and trailers.

Engine specifications:
  • GX630 Honda air cooled engine
  • V-Twin cylinder, 4-stroke gasoline engine
  • Electric start
  • Inlet with NPT thread (other threads available on request)
  • Outlet down right with NPT Threads
  • Control panel Quick connector instead of battery
  • Separate gas tank not included

Pump unit specifications:
  • C.E.T. single stage centrifugal pump
  • Pump body made from high resistance aluminum alloy
  • Bronze impeller
  • Mechanical shaft seal
  • Exhaust priming system, guaranteed up to 20’ (6 meter) lift
  • One 1-1/2" (38mm) delivery outlet
  • One 2-1/2" (65mm) suction inlet
  • Dimensions: Length: 19-3/4" (502 mm); Width: 24-1/4" (615 mm); Height: 24-3/4" (630 mm)
  • Weight: 147.4 lbs (67 kg)

Accessories:
  • Pressure gauge
  • Low oil alert
  • Quick connect for 12-V battery

Warranty:

3 Years Limited
