Akron Brass 4471 AkroFoam Master Stream Nozzle
Akron Brass AkroFoam Master Stream Nozzle



Price: $4,450.00

Price with Selected Options: $4,450.00

Availability: Available for order
Product Code: AKRON-4471

Akrofoam Master Kit

4471 AkroFoam Nozzle + Pickup Tube [Add $195.00]
4471 AkroFoam Nozzle + Pickup Tube and Valve [Add $305.00]
4471 AkroFoam Nozzle + Quick connect Pickup Tube and Metering Head [Add $975.00]
none
Choose a Thread Type

NST/NH
Akrofoam Foam Shutoff

4471 Foam Shutoff [Add $140.00]
none
Akrofoam Drum Kit

4471 Drum Kit [Add $120.00]
none

Qty:
Description

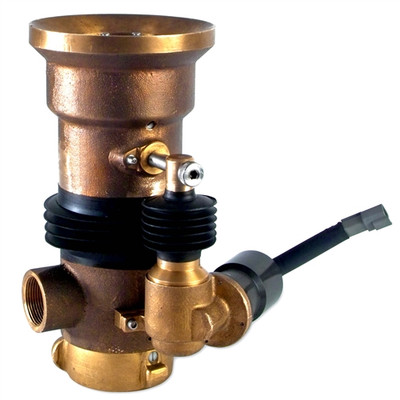

Akron Brass AkroFoam Master Stream Nozzle

The Akron Brass AkroFoam Master Stream Nozzle is a self-educting master stream nozzles designed for educting foam at flow rates up to 1000 GPM (4800 LPM).

Features:
  • Metering Rate: -1%, 3%, & 6% for 350 & 500 GPM -1% & 3% for 750 & 1000 GPM
  • Maximum Pressure: 200 psi/14 bar
  • 12 Volt Motor: -3 amps
  • 24 Volt Motor: 1.5 amps

Specifications:
Style: 4471
Warranty: 5 Year Warranty
Weight: 30 lbs (13.6 kg)
Type: Foam
Material: Brass
Brand: AkroFoam
Length: 12-1/4" (311mm)
Width: 6" (152mm)
Height: 9-1/8" (232mm)
Inlet: 2-1/2" (65mm)
Flow (GPM): 350-500-750-1000
Flow (LPM): 1300-1900-2800-3800
